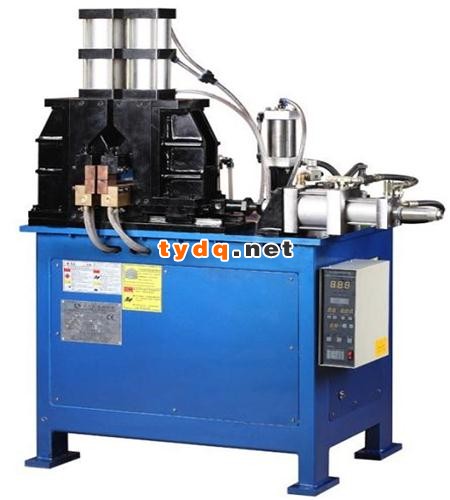

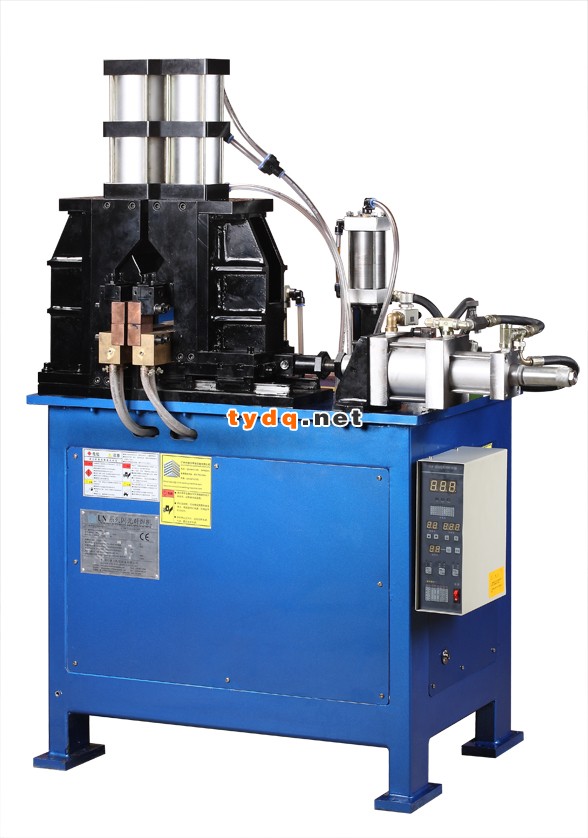

UN系列闪光铁艺对焊机,法兰对焊机,钢筋对焊机,轮毂对焊机



单价 48880.00 / 台对比
销量 暂无
浏览 438
发货 广东广州市付款后3天内
库存 888台起订1台
品牌 德力
输入电压 380V
额定容量 150KW
最大顶锻力 12000N
过期 长期有效
更新 2017-04-18 17:15

联系方式
加关注0

广州市德力焊接设备有限公司

企业会员第8年
资料未认证
保证金未缴纳
  • 广东-广州市
  • 上次登录 2017-04-18
  • 王先生 (先生)   业务经理
详细说明

闪光对焊的主要焊接工艺及原理:

1.焊接电极加紧工件,在工件尚未完全接触时,开始闪光。

2.接下来,焊接电极夹紧的工件缓慢接近,随着电流密度的增加,工件间接触处开始熔化,同时有部分金属熔液溢出,形成初始的对焊节点。

3.焊接区域变得越来越热,对焊的速度也随着加速。

4.闪光和飞溅使两个接触面完全焊接在一起。

5.最后再利用高压进行顶锻,切断电流,焊接完成。

 UN小

The Main Principle of Flash Butt Welding:

1.The flash butt process starts when the two workpieces to be welded which are clamped by welding jams still not meet each other.

2.During the subsequence,move the welding jaws together slowly,the welding current density will increase,then the metal material in the gap between the jaws becomes molten,at the same time a shower of sparks also being emitted.

3.As the cross-sectional area in the welding becomes extremely hot,the motion is accelerated.

4.The flashing also makes the surfaces to welded together totally.

5.Finally the upset occurs at high pressure,the welding current is cut off.



主要应用领域:

1.各种餐具,厨房和餐具刀具的焊接;

2.自行车,摩托车,汽车车圈,及其他金属环的对焊;

3.各种金属丝,金属带,铁棒,建筑用钢筋对焊;

4.各种圆管,方管的“L”形与“T”形焊接;

5.窗框与门框的对角焊接。



Typical Applications:

1.All kinds of dinnerware,cooking knives and table knives;

2.Bicycle rim,motorbike rim,car rim,or similar strip rings;

3.Various metal wire and steel strip,construction steel bar and rebar;

4.Round,Square and Rectangular tubes welding into “L” or “T” shape;

5.Mitre welding of door and window frames.



主要技术参数:

Main Technical Parameter:



参数

Parameter

额度功率Rated Power

额度电压Rated Voltage

额定频率Rated Frequency

最大短路电流Max Short Current

负载持续率Rated Duty Cycle

最大加紧力Max Clamping Force

最大顶锻力

Max Upsetting Force

冷却水流量Cooling Water Required

平均重量Average Weight



外形尺寸Over Dimensions L*W*H

型号

Model No.

UN-50

50KVA

380V/420V

50/60Hz

19000A

50%

4000N

2000N

150L/H

350Kg

100*90*150CM

UN-75

75KVA

380V/420V

50/60Hz

24000A

50%

6500N

3000N

150L/H

450Kg

100*90*150CM

UN-100

100KVA

380V/420V

50/60Hz

28000A

50%

6500N

3000N

150L/H

550Kg

100*90*150CM

UN-150

150KVA

380V/420V

50/60Hz

32000A

50%

8500N

4000N

300L/H

1200Kg

140*100*170CM

UN-200

200KVA

380V/420V

50/60Hz

37000A

50%

8500N

4000N

300L/H

1400Kg

140*100*170CM

UN-250

250KVA

380V/420V

50/60Hz

45000A

50%

12000N

6000N

600L/H

1600Kg

180*120*190CM

UN-300

300KVA

380V/420V

50/60Hz

52000A

50%

12000N

6000N

600L/H

1800Kd

180*120*190CM
